125141***

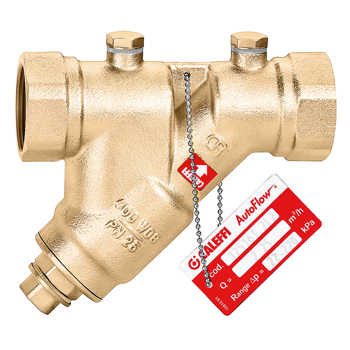

AUTOFLOW®, Stabilizzatore automatico di portata con cartuccia in acciaio inox.
| Codice | Attacco | Nota | Kv | |
|---|---|---|---|---|
| 125141*** (10–95 kPa) | G 1/2" (ISO 228-1) F | 0,3; 0,45; 0,5; 0,6; 0,7; 0,8; 0,9; 1,0 | 6,69 m3/h | + |
| 125141*** (22–210 kPa) | G 1/2" (ISO 228-1) F | 0,12; 0,15; 0,2; 0,25; 0,35; 0,4; 0,6; 0,7; 0,8; 0,9; 1,2; 1,4; 1,6; 1,8 | 6,69 m3/h | + |
| 125141*** (40–390 kPa) | G 1/2" (ISO 228-1) F | 0,25; 0,35; 0,45; 0,7; 0,9; 1,1; 1,4; 1,6; 1,8; 2,1; 2,25; 2,5; 2,75 | 6,69 m3/h | + |
| 125151*** (10–95 kPa) | G 3/4" (ISO 228-1) F | 0,3; 0,45; 0,5; 0,6; 0,7; 0,8; 0,9; 1,0 | 7,58 m3/h | + |
| 125151*** (22–210 kPa) | G 3/4" (ISO 228-1) F | 0,12; 0,15; 0,2; 0,25; 0,35; 0,4; 0,6; 0,7; 0,8; 0,9; 1,2; 1,4; 1,6; 1,8 | $$ data missing $$ | + |
| 125151*** (40–390 kPa) | G 3/4" (ISO 228-1) F | 0,25; 0,35; 0,45; 0,7; 0,9; 1,1; 1,4; 1,6; 1,8; 2,1; 2,25; 2,5; 2,75 | 7,58 m3/h | + |
| 125161*** (10–95 kPa) | G 1" (ISO 228-1) F | 0,7; 0,8; 0,9; 1,0 | 13,42 m3/h | + |
| 125161*** (22–210 kPa) | G 1" (ISO 228-1) F | 1,0; 1,2; 1,4; 1,6; 1,8; 2,0; 2,25; 2,5; 2,75; 3,0; 3,25; 3,5; 3,75; 4,0; 4,25 | $$ data missing $$ | + |
| 125161*** (40–390 kPa) | G 1" (ISO 228-1) F | 2,5; 2,75; 3,0; 3,25; 3,5; 3,75; 4,0; 4,25; 4,5; 5,0; 5,5; 6,0 | 13,42 m3/h | + |
| 125171*** (10–95 kPa) | G 1 1/4" (ISO 228-1) F | 0,7; 0,8; 0,9; 1,0 | 13,26 m3/h | + |
| 125171*** (22–210 kPa) | G 1 1/4" (ISO 228-1) F | 1,0; 1,2; 1,4; 1,6; 1,8; 2,0; 2,25; 2,5; 2,75; 3,0; 3,25; 3,5; 3,75; 4,0; 4,25 | $$ data missing $$ | + |
| 125171*** (40–390 kPa) | G 1 1/4" (ISO 228-1) F | 2,5; 2,75; 3,0; 3,25; 3,5; 3,75; 4,0; 4,25; 4,5; 5,0; 5,5; 6,0 | 13,26 m3/h | + |
| 125181*** (10–95 kPa) | G 1 1/2" (ISO 228-1) F | 2,75; 3,0; 3,25; 3,5; 3,75; 4,25; 5,0; 7,0 | 34,72 m3/h | + |
| 125181*** (22–210 kPa) | G 1 1/2" (ISO 228-1) F | 4,0; 4,5; 5,5; 6,0; 6,5; 7,5; 8,0; 8,5; 9,0; 9,5; 10,0; 11,0 | 34,72 m3/h | + |
| 125181*** (40–390 kPa) | G 1 1/2" (ISO 228-1) F | 3,0; 3,25; 3,5; 3,75; 4,0; 4,25; 4,5; 6,5; 7,0; 7,5; 8,0; 8,5; 9,0; 10,0; 11,0; 12,0; 13,0; 14,5; 15,5 | $$ data missing $$ | + |
| 125191*** (10–95 kPa) | G 2" (ISO 228-1) F | 2,75; 3,0; 3,25; 3,5; 3,75; 4,25; 5,0; 7,0 | 37,38 m3/h | + |
| 125191*** (22–210 kPa) | G 2" (ISO 228-1) F | 4,0; 4,5; 5,5; 6,0; 6,5; 7,5; 8,0; 8,5; 9,0; 9,5; 10,0; 11,0 | 37,38 m3/h | + |
| 125191*** (40–390 kPa) | G 2" (ISO 228-1) F | 3,0; 3,25; 3,5; 3,75; 4,0; 4,25; 4,5; 6,5; 7,0; 7,5; 8,0; 8,5; 9,0; 10,0; 11,0; 12,0; 13,0; 14,5; 15,5 | $$ data missing $$ | + |
Disegni e Modelli:
